GEECO
Industries where GEECO dealing
Sewage, effluent & water, sugar, distillery & brewery, paper & pulp, cellulose, ceramic & refractory’s, explosive, chemical, construction, toiletries, edible oil, fertilizer, marine, mining, man made fiber, oil & gas, paint & varnish, soap & detergent, starch, cattle feed, meat processing, dye stuff etc.
PRINCIPLE

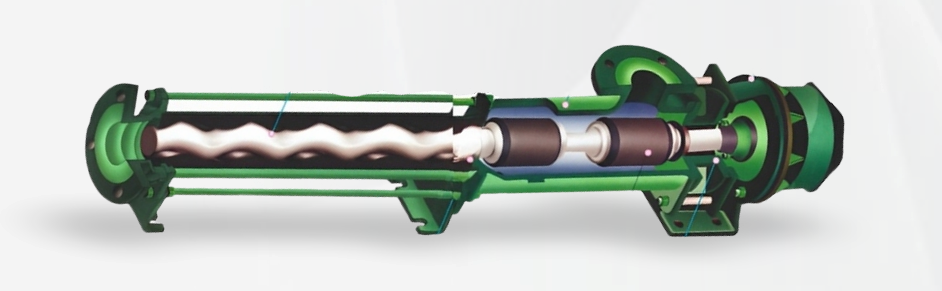

The main pumping components of a progressive cavity screw pump consist of a single external helix metallic rotating part called the rotor and a fixed double internal helix polymer component known as the stator. As the rotor rotates within the stator, cavities are formed and progressively move from the suction side to the discharge end, smoothly transporting the fluid through the pump. This efficient design ensures a continuous and stable flow, making it suitable for handling various types of fluids.
FLUID HANDELED
This list includes a diverse range of substances and materials handled in various industries. Sludges and effluents include digested sewage sludge, de-watered effluent sludge, industrial effluent, fuel oil sludge, and gum sludge.
Chemical and additive applications cover poly-electrolytes, flocculants, PAC, alum, ammonium hydroxide gel, epoxy mix, sodium silicate, and tribasic lead sulfate. Food and beverage products encompass molasses, sugar syrup, magma, spent wash, casein slurry, maize slurry, edible oil, rice bran oil, and cake mix. Industrial slurries and solutions feature paper pulp, coating slurry, ferrite slurry, ceramic and clay slurry, lime slurry, bentonite slurry, cement slurry, grout mix, and carbon injection for blast furnaces. Petroleum products include lube oil, petroleum jelly, varnish, and paint. Specialty mixtures consist of resin, acrylic emulsion, latex, explosive matrix emulsion, ammonium nitrate solutions, electroplating solutions, and detergent and soap slurry, as well as adhesives like glue.
Material of Construction
HOUSING COMPONENT – Cast Iron, Stainless Steel, Alloy20, Hastelloy.
ROTOR & SHAFT – SS-304, SS-316, SS-316L, Tool Steel, SS-410 Hardened & Hard Chrome Plated.
STATOR – Nitrile Rubber, High Nitrile Rubber, EPDM, Viton, Hycar Rubber, Hyplon Rubber, Neoprene Rubber.
SHAFT SEALING – Gland Packing & Mechanical Seal as per API standard.
SKID – Mild Steel EP, Stainless Steel (Cladded or Whole) Fabricated.
Type of Drive
BELT DRIVE
Belt drives are commonly used in progressive cavity water pumps to transmit power from the motor to the pump shaft. This system offers flexibility in speed adjustment, making it easier to control flow rates and optimize pump performance.
Belt drives also provide shock absorption, reduce vibration, and protect the motor from direct overloads, contributing to the pump’s smooth and efficient operation in various fluid handling applications.
